Basic Info.
Structure | Spring Plate Type Roller |
Type | Impact Idler |
Usage | Industrial Belt Conveyor |
Service Life | 45000 Hour |
Diameter | Customized |

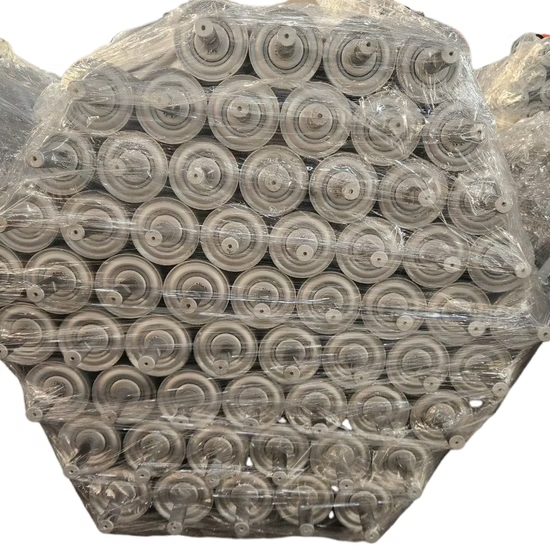

Transport Package | Standard Export Package |
Trademark | XingSheng |
Production Capacity | 1000000pieces/Year |
Bearing Type | Double Sealed Bearing |
Product Color | Customized |
Warranty Period | 1 Year |
Length | Customized |
Maintenance Methods | Maintenance-Free |
Specification | Steel Belt Conveyor Idler |
Origin | China |

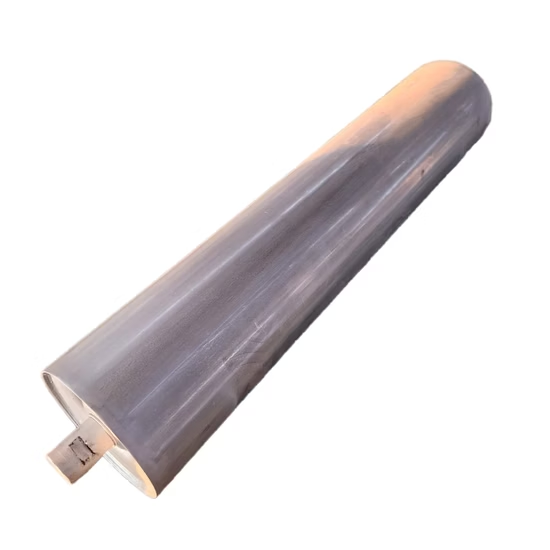

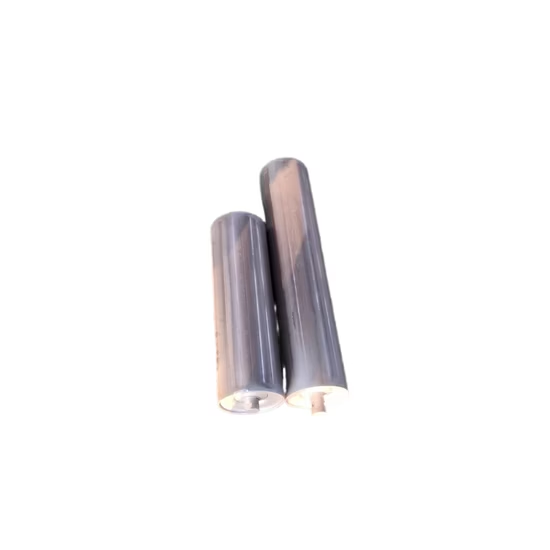

Product Description
High Quality Factory Custom-made Maintenance-free Anti-wear Anti-corrosion Sealed Waterproof and Dustproof Anti-vibration High Quality Steel Conveyor Idler
BASIC INFORMATION OF CONVEYOR Idler | |
Product Trademark | Risbon |
Idler Diameter | φ89-φ219 |
Idler Length | 200mm-2800mm |

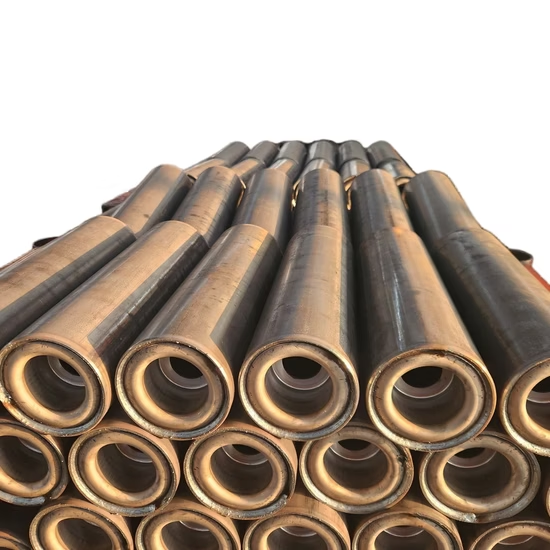

Idler Pipe | Q235 carbon steel, high precision straight seam welded pipe with state-of roundness and straightness to ensure well-balanced rotaton. |
Shaft | Q235 carbon steel, made of cold-drawn bright round steel, which is superior in corrosion resistance and stifnes.We have strict control over tolerance of shaft dimension and surface quality.The service lifespan can be well secured and proloned |
Bearing | C4 large clearance and double-sided sealing,which can effectively compensate for temperature rise during operation |
Bearing Brands | Havalo,NSK, or as per your needs |
Seals | composite sealing structure of non-contact labyrinth and contact lip, water-proof and dust-proof |
Bearing Sest | be made of isotropic and ductile special strip steel, processed and formed through a unique seven-step stamping process, with high accuracy, lightweight, certain elasticity and good stress state |
Color | black, red, blue, yellow available , or according to your reguirement.black, red, blue, yellow available , or according to your requirement. |
Our esteemed company boasts a top-tier TKAS idler production line crafted by the renowned Tangshan Kaiyuan, complemented by three additional semi-automatic idler production lines from the same esteemed manufacturer. Furthermore, we have two advanced idler shaft material production lines developed by the illustrious Fuzhou Sanxun. We proudly possess the powerful capability to process a vast range of idlers with diameters varying from φ89 mm-φ219mm and an impressive length range spanning from 190mm - 2200mm. Our dedication to excellence is further exemplified by our choice of high-quality special steels for idlers, sourced from prestigious suppliers such as Xuzhou Guanghuan and the esteemed Taiyuan Iron and Steel (TISCO) stainless steel pipes.
Our commitment to superior quality is unwavering as we undertake specialized straightening for steel pipes. This meticulous process reduces the ovality and straightness errors of roller rings by an astounding 50% when compared to the MT821 standard. The idler's simulated frictional resistance coefficient has been impressively decreased from 0.025 to 0.023; radial runout has been significantly improved from 1.0 mm to a remarkable 0.35 mm; and the straightness post-straightening is enhanced from 1.0 mm to an outstanding 0.20 mm. With an axial load exceeding 15 KN, as stipulated by the MT821 standard, the lifespan of our idlers is elevated by one precision grade, exceeding an impressive 45,000 hours.
Our production line is a marvel of technological advancement, realizing full automation in every step of the idler production process, including straightening, pipe cutting, boring, stamping, welding, and assembly. This seamless operation epitomizes efficiency and innovation.
Our idler shaft processing employs cutting-edge fully automatic production lines, capable of executing precise servo-fixed-length cutting, end face turning, chamfering, snap ring groove cutting, center hole drilling, and milling flat groove operations on the idler shaft. Notably, the distance between two milled grooves can be as minimal as 190mm, with the capacity to process workpieces up to a substantial maximum length of 2200mm.
Technological level
1. Our idlers are ingeniously designed for easy replacement, and the welding craftsmanship is solid and enduring, ensuring no wear on the idler shell throughout its standard service life, which impressively lasts no less than 45,000 hours.
2. Our idlers are equipped with specialized bearings and stamped bearing housings featuring double-layer seals. This design ensures exceptional sealing, minimal rotational resistance, and extended longevity. We utilize elite bearings from reputable imported brands for optimal performance.
3. The idlers' external dustproof capabilities adhere strictly to the MT821 - 1999 regulations, and their waterproof performance is equally compliant with these rigorous standards.
4. Every steel material undergoes thorough pre-treatment to achieve the St2-1/2 level. For parts involving welded structures, they are manufactured in strict adherence to national welding standards, ensuring structural conformity with the latest national criteria.
5. The rotational resistance coefficient of the upper idlers is a precise 0.022 or below, while the lower idlers maintain an even lower coefficient, not exceeding 0.02, attesting to our commitment to superior engineering and performance.
