| Quantity: | |
|---|---|
Basic Info.
Model NO. | Upper Idler Frame |
Surface Treatment | Baking Paint |
Key | Conveyor Idler Frame |
Usage | Conveyor Belt System |
Transport Package | Standard Export Package |
Trademark | XingSheng |
Production Capacity | 1000000pieces/Year |
Feature | Fire Resistant,Oil Resistant,Heat Resistant |
Name | Upper Idler Frame |
OEM | Support |
Key Selling Points | Long Service Life |
Specification | custom |
Origin | China |
Packaging & Delivery
Package Size | 160.00cm * 140.00cm * 60.00cm |
Package Gross Weight | 46.000kg |
Product Description

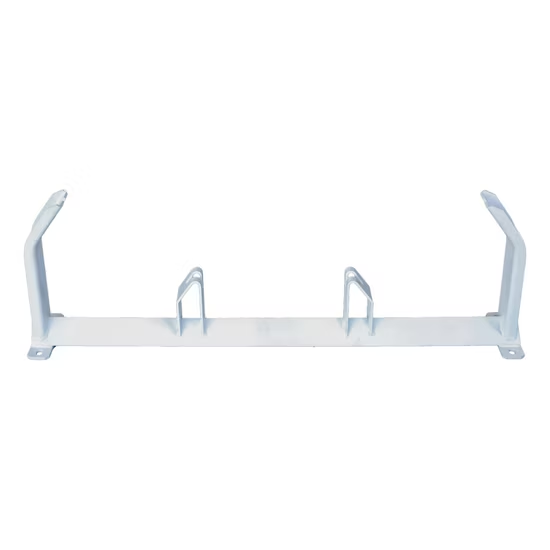

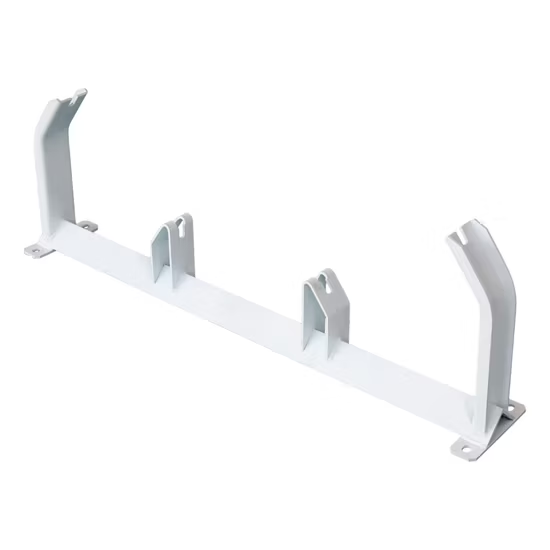

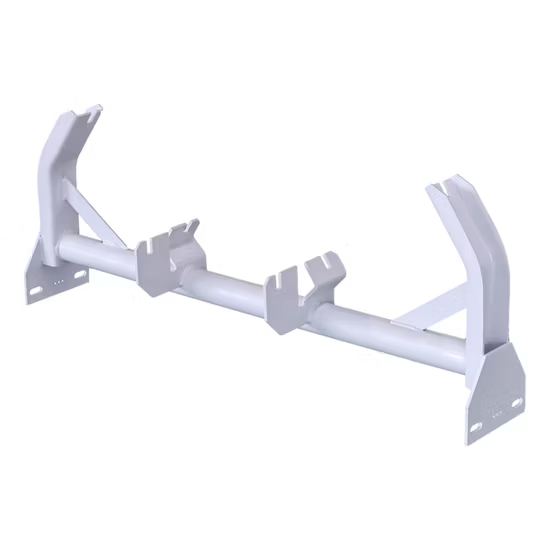

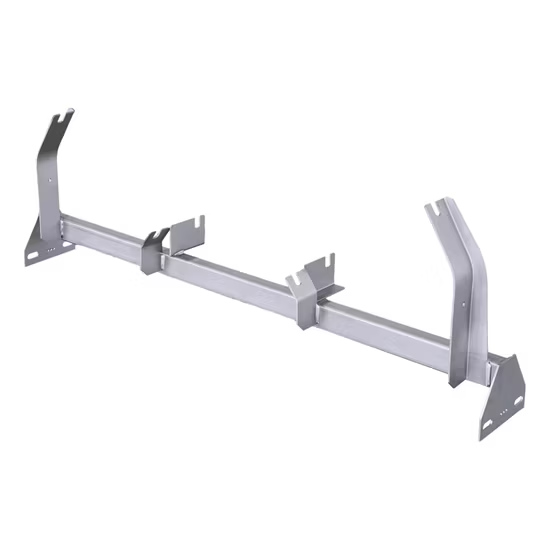

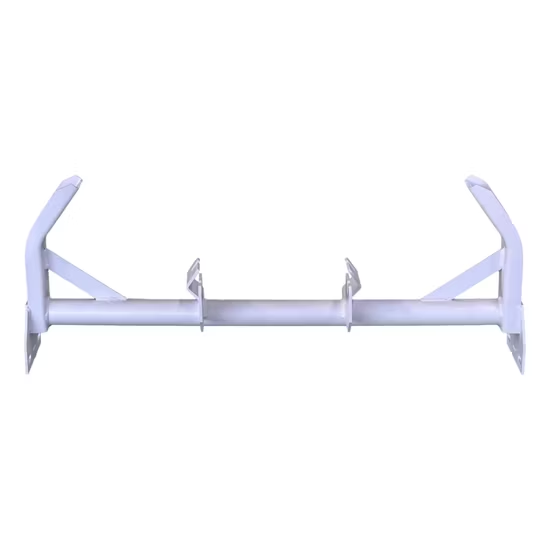

Conveyor Roller Supporting Bracket Fire Resistant Upper Idler Frame for Conveyor Belt

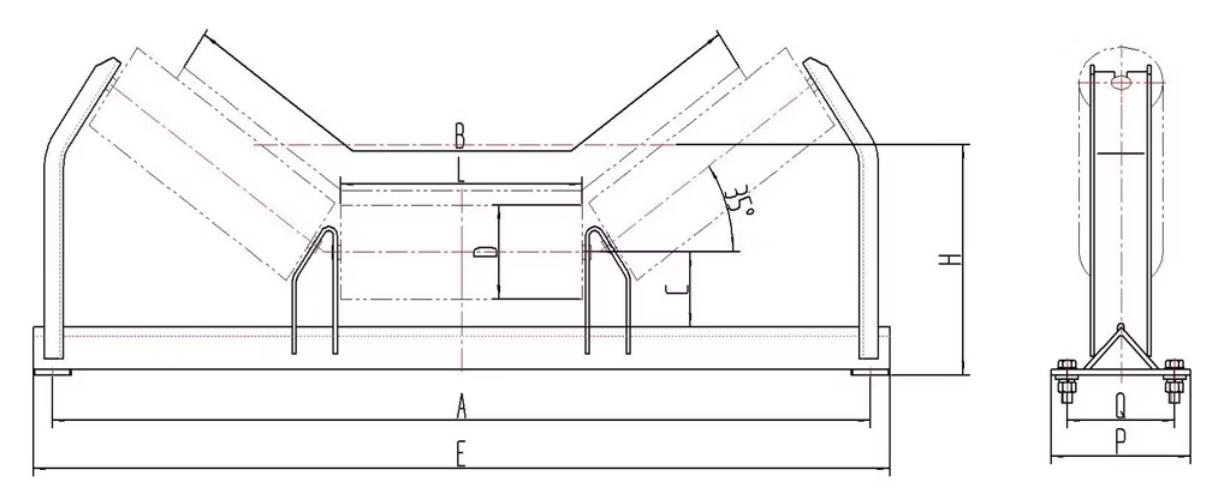

Technical Parameters
Belt Width | A | B | L | D | H | Q | Weight | Drawing Number |
800 | 1090 | 135.5 | 315 | ф89 | 215 | 130 | 11.96 | DTII 03C0111 |
146 | 108 | 270 | 11.02 | DTII 03C0121 | ||||
13.08 | DTII 03C0122 | |||||||
1000 | 1290 | 159 | 380 | 300 | 170 | 22.01 | DTII 04C0122 | |
22.01 | DTII 04C0123 | |||||||
173.5 | 325 | 22.55 | DTII 04C0132 | |||||
22.55 | DTII 04C0133 | |||||||
1200 | 1540 | 176 | 465 | 335 | 200 | 30.74 | DTII 05C0122 | |
30.74 | DTII 05C0123 | |||||||
30.74 | DTII 05C0124 | |||||||
190.5 | 133 | 360 | 31.16 | DTII 05C0132 | ||||
31.16 | DTII 05C0133 | |||||||
31.16 | DTII 05C0134 | |||||||
207.5 | 159 | 390 | 31.97 | DTII 05C0142 | ||||
31.6 | DTII 05C0143 | |||||||
31.6 | DTII 05C0144 | |||||||
1400 | 1740 | 184 | 530 | 108 | 350 | 220 | 34.21 | DTII 06C0123 |
41.84 | DTII 06C0124 | |||||||
198.5 | 133 | 380 | 34.4 | DTII 06C0133 | ||||
42.22 | DTII 06C0134 | |||||||
215.5 | 159 | 410 | 34.98 | DTII 06C0143 | ||||
45.1 | DTII 06C0144 |
