Basic Info.
Model NO. | Upper Self-aligning Idler Frame |
Surface Treatment | Baking Paint |
Key | Conveyor Idler Frame |
Usage | Conveyor Belt System |
Transport Package | Standard Export Package |
Trademark | XingSheng |
Production Capacity | 1000000pieces/Year |
Feature | Fire Resistant,Oil Resistant,Heat Resistant |

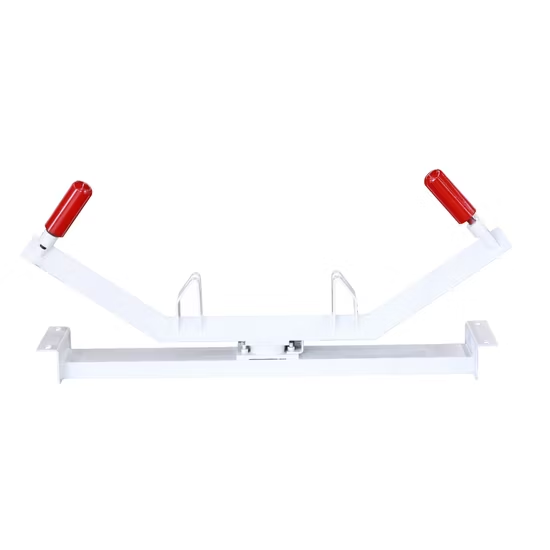

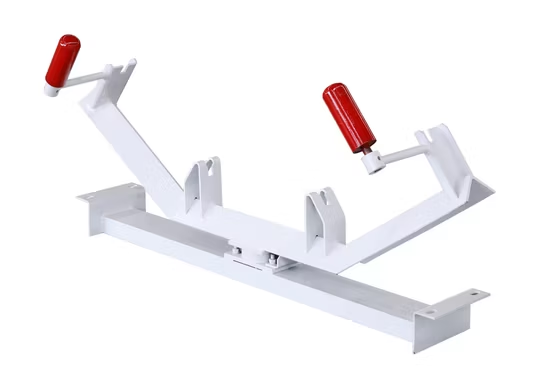

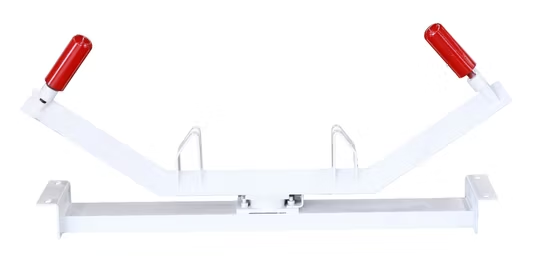

Name | Upper Self-Aligned Idler Frame |
OEM | Support |
Key Selling Points | Long Service Life |
Specification | custom |
Origin | China |
Packaging & Delivery
Package Size | 1150.00cm*400.00cm*480.00cm |
Package Gross Weight | 100.000kg |
Product Description
The belt conveyor is the most basic transportation tool in coal mines, and belt deviation is a common fault, which seriously affects normal production and the safe operation of equipment. The belt conveyor deviation corrector is a new product developed by our company based on the simple deviation corrector. This product has the characteristics of large deviation correction rotation angle, flexible and fast deviation correction, and good deviation correction effect. It can effectively adjust the belt deviation faults caused by various factors such as installation deviation of the belt conveyor, material impact, uneven load, and uneven elongation of the belt section, improve the overall operation level of the equipment, and ensure normal production and safe operation.
Product Parameters
Technical Parameters

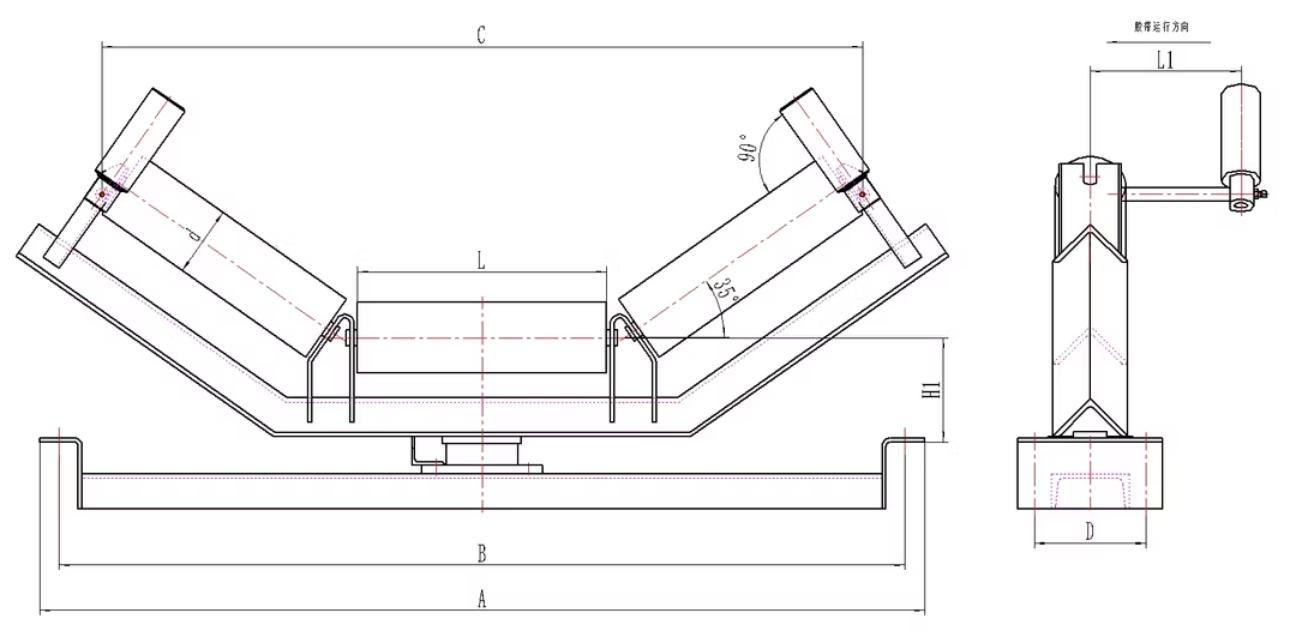

Belt Width | A | B | C | D | d | L | L1 | H1 | Weight | Drawing Number |
800 | 1150 | 1090 | 1092 | 130 | Φ89 | 315 | 230 | 135.5 | 41.53 | DTII03C1711 |
1000 | 1350 | 1290 | 1160 | 170 | Φ108 | 146 | 41.63 | DTII03C1722 | ||
380 | 159 | 53.22 | DTII04C1722 | |||||||
53.22 | DTII04C1723 | |||||||||
Φ133 | 173.5 | 53.88 | DTII04C1732 | |||||||
53.88 | DTII04C1733 | |||||||||
1200 | 1600 | 1540 | 1455 | 200 | Φ108 | 465 | 176 | 79.93 | DTII05C1722 | |
84.28 | DTII05C1723 | |||||||||
Φ133 | 190.5 | 83.13 | DTII05C1732 | |||||||
83.13 | DTII05C1733 | |||||||||
83.17 | DTII05C1734 | |||||||||
Φ159 | 207.5 | 83.71 | DTII05C1742 | |||||||
83.71 | DTII05C1743 | |||||||||
84.33 | DTII05C1744 | |||||||||
1400 | 1800 | 1740 | 1650 | 220 | Φ108 | 530 | 184 | 99.4 | DTII06C1723 | |
Φ133 | 198.5 | 99.4 | DTII06C1733 | |||||||
99.57 | DTII06C1734 | |||||||||
Φ159 | 215.5 | 99.1 | DTII06C1723 | |||||||
99.1 | DTII06C1723 |
